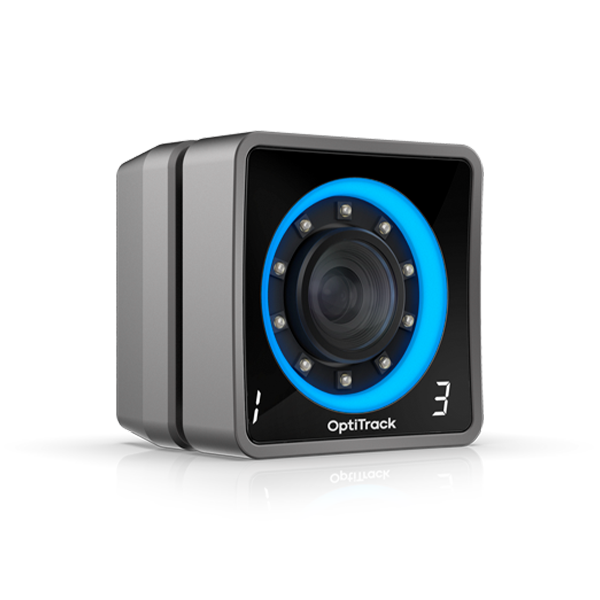

What is PrimeX 13W?
It is an optical-based wide-angle motion capture camera with a resolution of 1.3 MP and sensitivity up to 0.30 mm that can capture a maximum of 1000+ frames per second. It has a passive field of view of up to 9 meters and an active field of view of up to 15 meters.
What does PrimeX 13W do?
Entertainment
It provides high sensitivity and wide-angle recording for places that require wall-to-wall recording, such as laboratories and meeting rooms. It can record the movements of one or more people at the same time.
Health & Sport
It provides high-precision recording in medium-sized studios. It is capable of recording the movements of one or more people at the same time.
How does PrimeX 13W work?
OptiTrack cameras work with OptiTrack’s Motive software to provide the most sensitive data in the industry.
Technicial Specifications
Vision Sensor
1280×1024 resolution
240Hz frame rate
4.2ms delay
Range
+/- 0.30mm 3D accuracy
9 meters passive marker range
15 meters active marker range
Connection
PoE
Shutter
0.25ms speed
0.01 ms minimum speed
3.9ms top speed at 240 FPS
Lens and Filter
3.5mm F#2.4
82° horizontal FOV
70° vertical FOV
Image Processing
Grayscale
Dimension and Weight
Width
2.7 inches (6.86 cm)
Depth
2.1 inches (5.46 cm)
Height
2.7 inches (6.86 cm)
Weight
0.7 pounds (0.32 kg)
Body
Aluminum and polycarbonate
